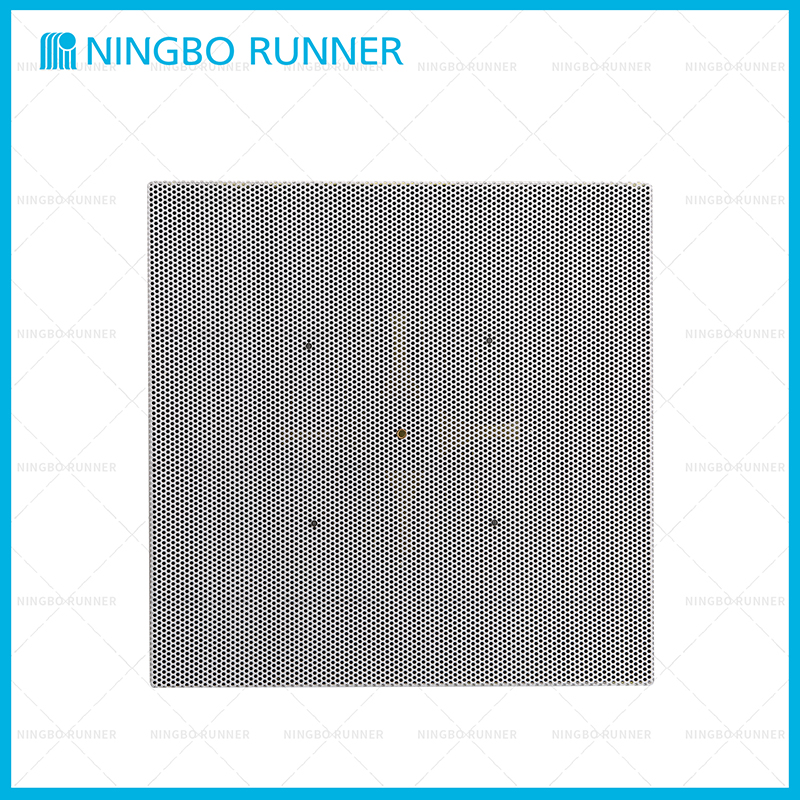

402408ADWI T-Bar Steel Perforated Supply Diffuser with Adjustable Deflectors and Insulation
產品型號
402408ADWI
參數
產品特點
下載
- FuctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-bar ceiling ?
- Perforated faceplate
- Adjustable ?round deflectors
- With insulation?
- Formed metal back panel?
- Accept model #403302 snap-in collar ring (6'-14')
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish?
-

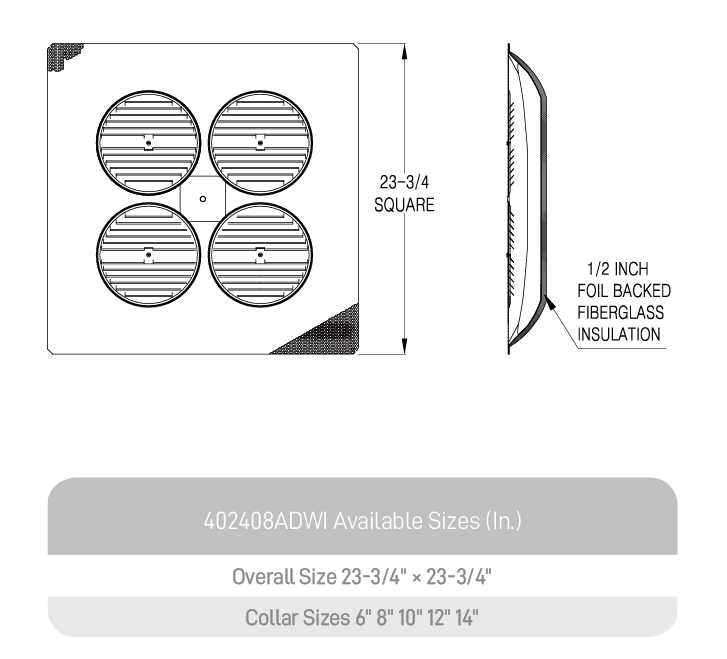

402408ADWI Drawing
