產品名稱
402408BPR6 T-Bar Steel Perforated Supply Diffuser with R6 Insulation
產品型號
402408BPR6
參數
產品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-Bar ceiling ?
- Perforated faceplate?
- Fixed square deflector
- With R6 insulation?
- Formed metal back panel?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- Accept model #403302 snap-in collar ring (6'-14')
- White durable finish
-

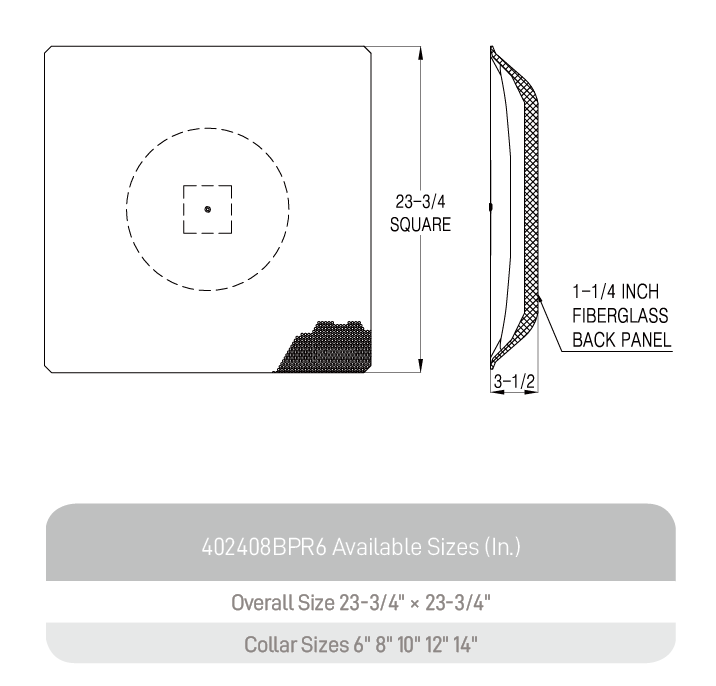

402408BPR6 Drawing
下載文件
