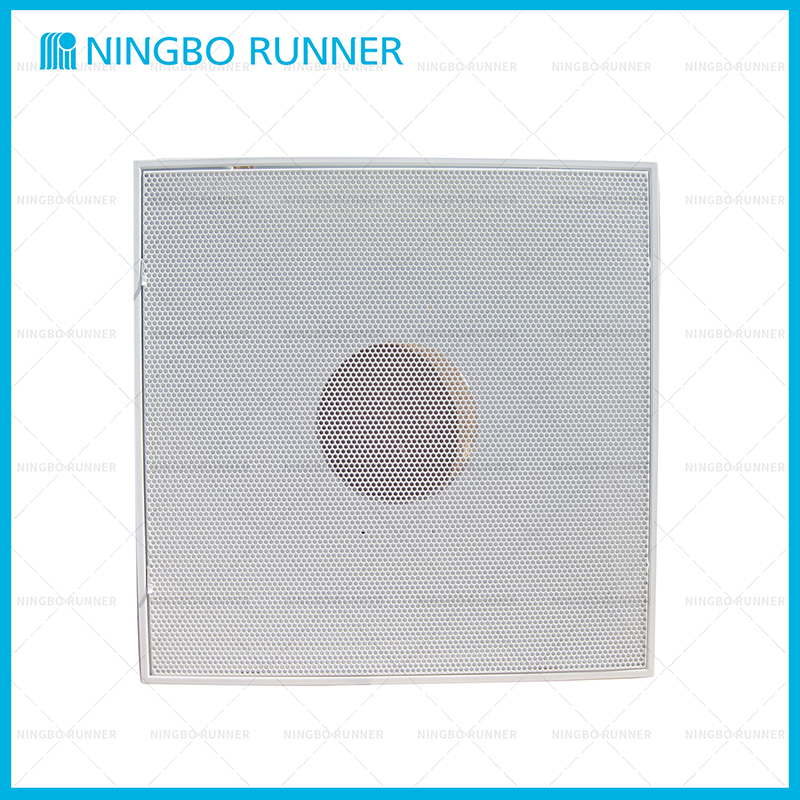

402411R6 T-Bar Steel Perforated Ruturn Filter Grille with R6 Insulation
產品型號
402411R6
參數
產品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24“×24
- Steel construction?
- Use for T-bar ceiling?
- Perforated faceplate?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)?
- Removable hinged face for easy air flow adjustment and cleaning?
- Use nominal 1' thick filters (not included)?
- With R6 insulation?
- White durable finish?
-

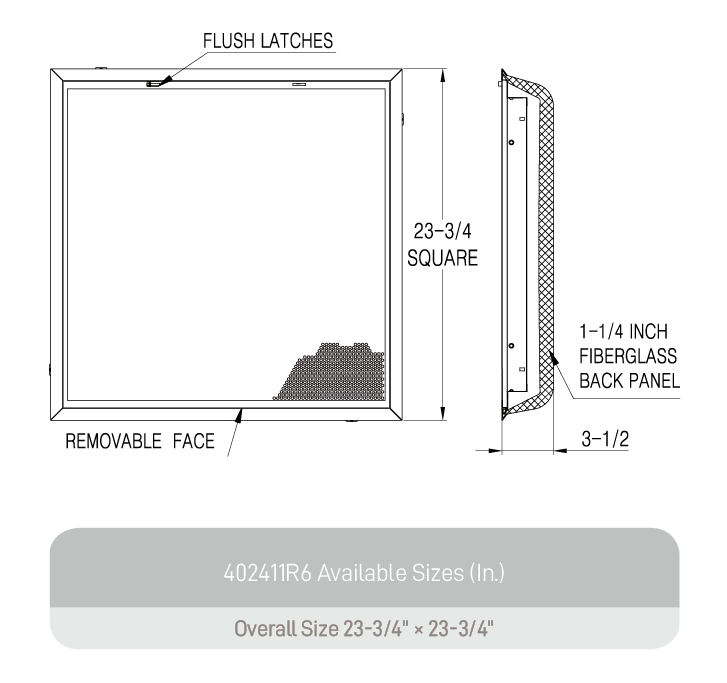

402411R6 Drawing
