- FunctionFor Air Supply or Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignLouvered
- MaterialAluminum
- Duct Opening SizeWidth 8-48in; Height 8-48in
- Extruded aluminum construction
- Horizontal bars at 45 degrees
- Use nominal 1" thick filters (not included)
- Filter grilles equipped with the rotated latch
- Available Finish: White
-

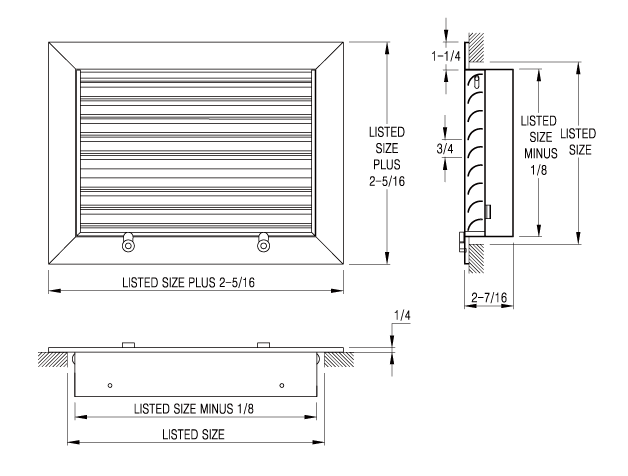

401513 Drawing
